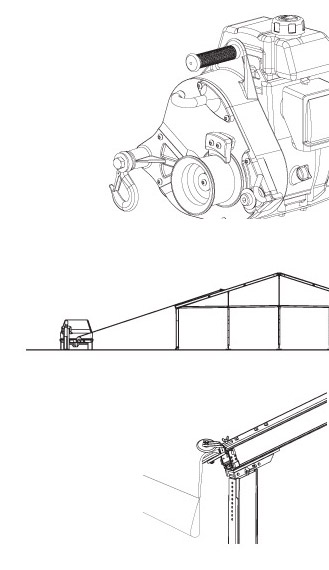

The Fabric Puller

A sensitive pull.

Take full advantage of Fiesta Tents' 30 years of experience by getting hold of this easy to use and efficient tool.

Through years of structure installation, we have developed a work tool that will enhance your crews' performance and help you greatly in setting up any and all clear span tents.

This new and innovative machine is made to pull tent tops on any and all clear span structures. This innovative piece of machinery will not only significantly reduce your labour requirements related to pulling tent tops, but it will also greatly improve the effeciency of this task.

The most significant feature of this product is the pulling sensitivity. As opposed to pulling with trucks or forklifts, this machine gives the operator a sense of the resistance offered when he is pulling the fabric.

This feature allows the operator to stop the process and maintain the top in place while another technician clears any obstructions. This prevents overstressing the tent tops and/or ripping the fabric, thereby causing expensive damages to your equipment.

Portable, lightweight and easy to use, this technology, extensively road tested by Fiesta Tents over the past years, is now made available to the entire industry. We can honestly say that this is one piece of machinery we could not do without.

Fabric Puller

Features

PULLING:

SINGLE LINE

CAPACITY:

1000 kg (2200 lb)

GEAR BOX

Aluminum alloy;
Gear ratio 110:1

UNIT WEIGHT
(DRY)

16 kg (35 lb)

ENGINE

4-stroke Honda™ GXH-50 cc

DIMENSIONS
(OVERALL)

33 cm (13") wide
36 cm (14") high
38 cm (15") deep

WARRANTY

5 years (Honda™ warranty on engine)

ROPE
(low stretch double
braided polyester)

Min. 10 mm (3/8")
Max. 16 mm (5/8")

PERFORMANCE

STANDARD DRUM
57 mm (21/4")

Max. line speed

12 m/min (40 ft/min)

Max. line pull

1136 kg (2500 lb)
